2D Sheets Manager

Command : S3d_Sheets

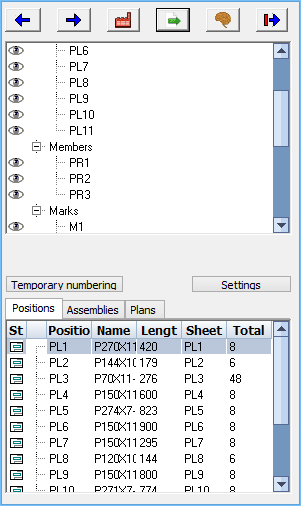

With the command Sheets manager you can open a dialog box that can stay opened permanently. It can also be docked to the edge of your CAD frame.

Two lists

The top list of this dialog box contains all the 2D sheets that you already created, and also all available bill of materials.

The bottom list reflects all 3D parts in the drawing. Each member or plate is listed here according to it's position or assembly number.

Right-clicking

By right-clicking on a 2D sheet you can perform a range of actions on the sheet.

By right-clicking on a position number, assembly number or camera you can perform an action on the 3D part.

This dialog box allows you to do the following general actions

With the top half of the dialog :

• Generating all workshop drawings.
• Generating all DXF files.
• Generating all DSTV files.
• Generating all bills of materials.
• Creating new General Arrangemant views.
• Starting a slide show of all 2D sheets.
• Printing all 2D sheets.
• Exporting all 2D sheets.
• Learning from all 2D sheets .

With the bottom half of the dialog :

• Settings. For the generation of bills of materials, position and assembly workshop drawings and General Arrangement views.
• Temporary numbering. Temporarily assigns position and assembly numbers to all 3D parts.
• An overview of all position numbers, assembly numbers and camera's that exist in the 3D drawing.
• Generating workshop drawings one by one.
