Exporting all 2D sheets

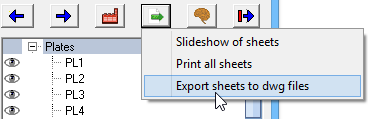

From within the sheets manager , click on to start the function Export sheets to dwg files.

Parabuild stores all 2D sheets in one .dwg file, together with all the 3D parts.

Use this function if you want to generate a separate dwg file for each 2D sheet.

This is necessary when you want to deliver the sheets to someone who doesn't have access to a Parabuild license.

The files will be stored in the same folder as the locations of the 3D dwg file.

Do note that the exported 2D sheets will not have a connection with the 3D parts.
