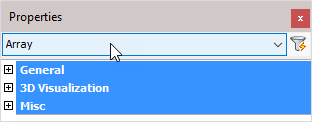

The 'Array' object type is used for creating and updating arrays of macros. It has the following headings:

General

3D Visualization

Misc



General: Is common to all object types, and covers general AutoCAD and BricsCAD settings, including: Color / Layer / Linetype / Linetype scale / Plot style / Lineweight / Transparency / Hyperlink / Handle /


3D Visualization: Is also common to all object types and includes: Material.

The material that is referred to here is only the visual representation material. For changing the actual material of parts, see the Additional Data section of plates, profiles or structures.

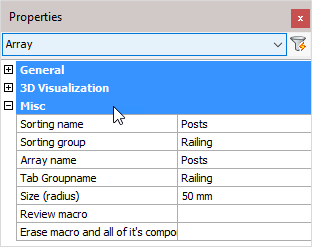

Misc

The name of the macro – this may be edited and will reflect in the macro dialog box

Group name:


Sorting name: The macro name to which the array should belong to in the macro edit dialog box

Sorting group: The group name to which the array should belong to in the macro edit dialog box

Array name: The name of this array

Tab Groupname: The name of the tab to which this array should be assigned to in the macro edit dialog box

Size (radius): The size of the triangle shown in the 3D model

Review macro: Will open the macro edit dialog, where the macro may be viewed and/or edited

Erase macro and all of its components: Will erase the array, all of its subject macros and all of the parts owned by these macros
