Command -  PrB_SlotHoleDlg




This command converts a round hole to a slotted hole.

Tip It is easier and quicker to modify a hole from within the properties of the bolt instead of this command.

At first, Parabuild will ask you to select the hole you want to convert into a slotted hole.

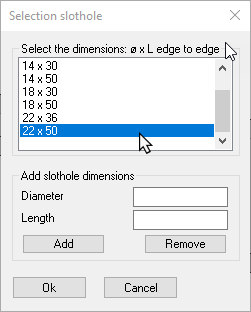

In the dialog, you can then select a specific measurement or with Other specify your own measurements.

After that, you need to specify the rotation angle by selecting a point relative to the axis of the slotted hole.
