Command -  PrB_ChangeHoleThread



Tip It is easier and quicker to modify a hole from within the properties of the bolt instead of this command.

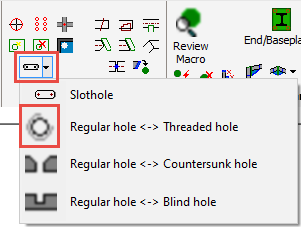

With this command you can convert a regular hole into a threaded hole and vice-versa. For illustration purposes, extra lines will be added to simulate the thread of the hole.

After starting this command you should select the edge of a hole. It will be converted instantly.

For more information about how Parabuild annotates threaded holes in the shop drawings, refer to the Global settings dialog.
