Command -  PrB_ArxBolt

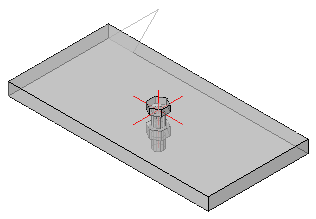

This command draws a single bolt through a plate or profile.

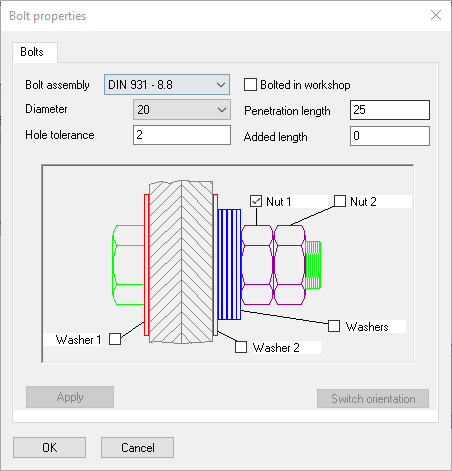

At the command line prompt, select a part, then the following dialog will appear:

Here you are able to select:

  • The Bolt-assembly
  • Bolt diameter
  • Penetration length (Grip) = the plate thickness
  • Hole tolerance (Bolt hole clearance)
  • Added length - The bolt length is calculated as: (Length = Penetration length (Grip) + Washers + Nuts + Added length)


If the 'Bolted in workshop' checkbox is checked, then it is assumed that the assembly is at least partly bolted in the shop.
