Command -  PrB_BoltsOnPlane

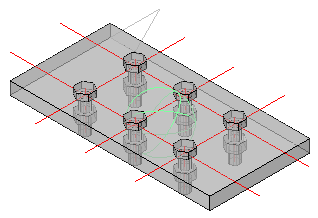

This command draws a range of bolts on a plate or profile's surface.

On selecting this command, you will be prompted to select a plane on a plate or profile.

You can select this plane by moving the cursor inside a plane, and then clicking the left mouse button.

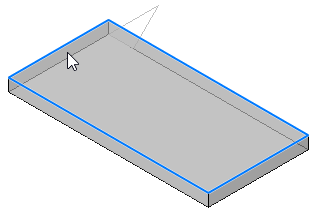

The circumference of the plane will be drawn thicker so that you can see the selected plane.

To select a different plane, you need to move the cursor and left-click the mouse again.

To accept the plane selection, press the <Enter> key or right-click the mouse.

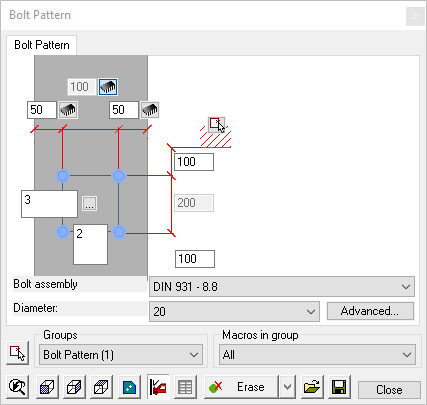

A dialog will appear prompting you to enter the dimensions for the bolt group.
