Editing the profile library

Parent Previous Next

You can open the dialog box for the editing of the profile library by means of the dialog box Placing Profiles, with the button Edit library.

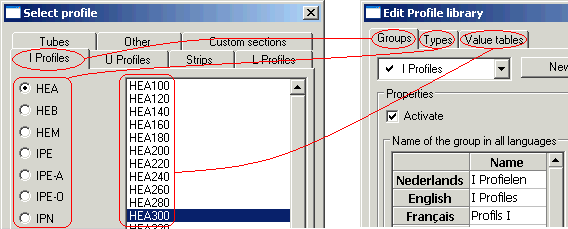

To make the choice from the large number of profiles more accessible, all profiles were split up in 3 levels.

Profile groups: we put together similar sections, like for example IPE, HEA and IPN under the group “I profiles”.

Profile types: we put together in one type profiles that have the same characterizations but other dimensions. Example: HEB200, HEB300, HEB400 is all profiles of the type HEB

Value tables: contains the table with each individual profile of one type. This table contains all dimensions that determine the size of each profile. These dimensions together with the type are used to draw the profile.





In this dialog box we can edit, deactivate and remove these groups, types and tables.
