Creating a section of a part

With this command you can add a section view to a position or assembly workshop drawing.

Before starting this command you need to activate a position or assembly workshop drawing.

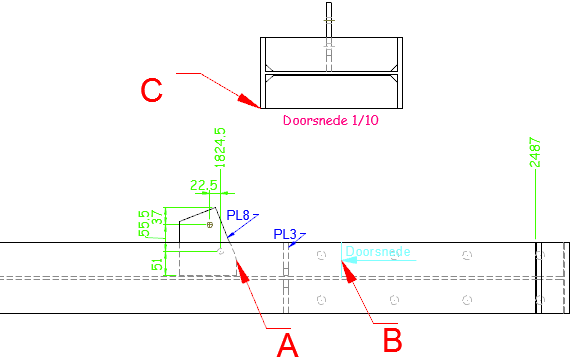

For the first point you need to select the midpoint of the section on a side view (point A on the illustration).

For the second point you need to select the viewpoint of the section. This point also determines the front view limitation of the new section view (point B on the illustration).

For the last point you choose the location of the new section view (point C on the illustration).
