Truss to Truss
Command -

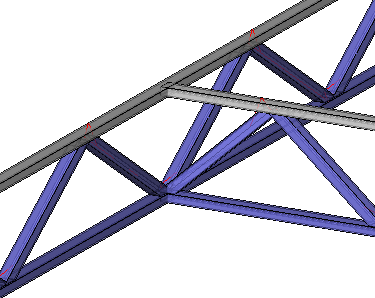

This command will add full depth end-plates for intersecting trusses in a T-connection.
On activating the command you will be prompted to select in this order :
- The lower chord of the truss that will be lengthened
- The upper chord of the truss that will be lengthened
- The lower chord of the truss that is continuous
- The upper chord of the truss that is continuous

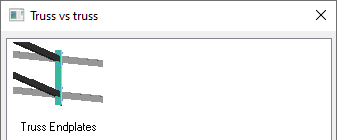

After selection, the options dialog will appear :

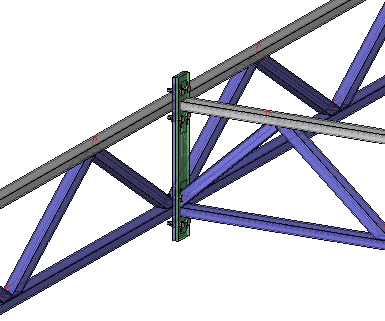

The end-plates will be drawn immediately :
