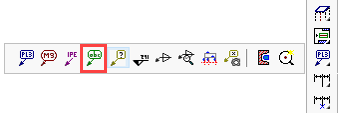

Command - (Prb_TagGroup "Comment")

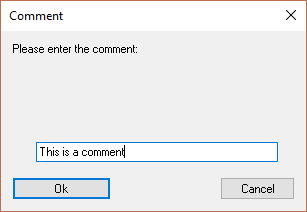

This command will draw a comment tag.

The annotations are meant to show additional information about a part on the 2D sheet.


After activating this command, you should first select the part to be annotated.

After that, the tag will attach itself to the mouse pointer : select a position and right click.

The appearance of the annotation can be adjusted by referring to Annotation Styles.
