Command - PrB_DrawWeldTag

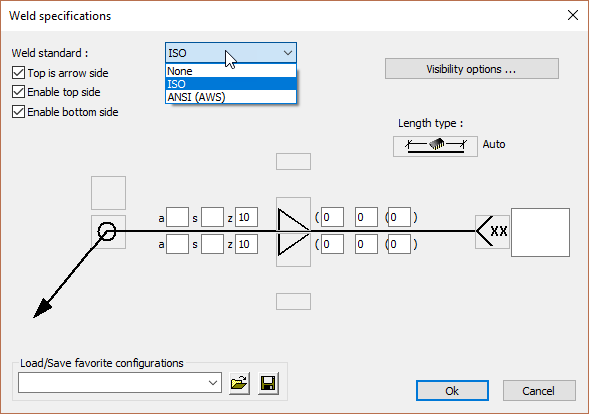

Activating the Weld Symbol command will open the weld symbol dialog.
There are 3 standards available:

  1. None
  2. ISO (International Standards Organization)
  3. ANSI  AWS (American Welding Society)

Though the systems differ, there are many commonalities in the dialog, which will be explained here:


Visibility options

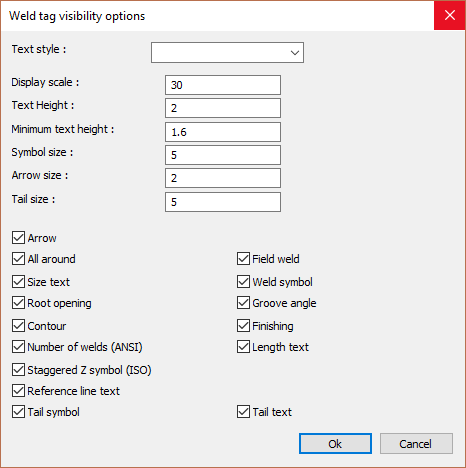

Selecting this button will allow you to customize how the weld symbol will look. The dialog is self-explanatory :


For more about the 2 weld standards, see ISO Weld Symbol and AWS Weld Symbol.
