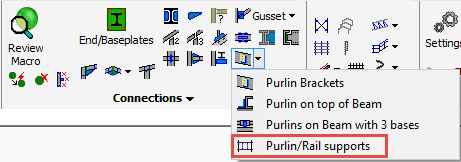

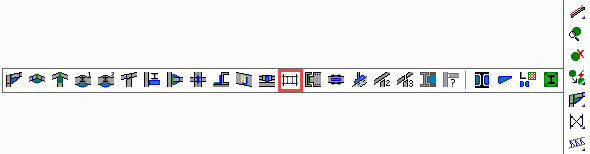

Command -




The Purlin / Rail support connections can draw supporting parts for purlins and rails.

It can draw these types of connections :

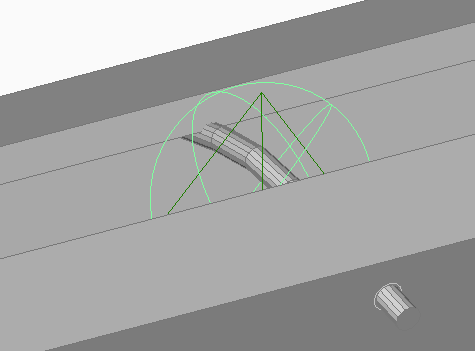

  • An array of Apex ties for the 2 top Z purlins
  • An array of Eaves ties between a Z purlin and a lipped C eaves beam

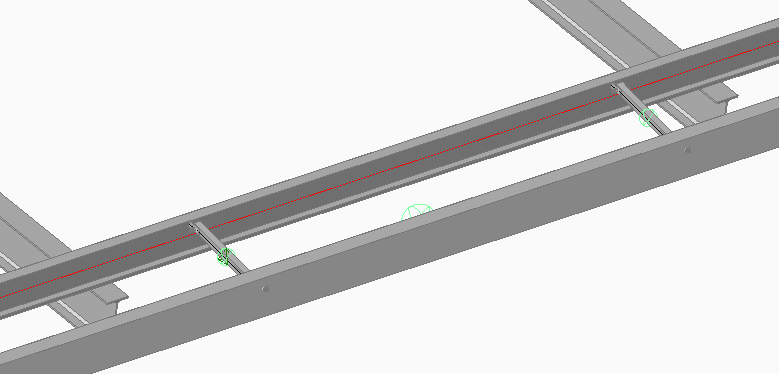

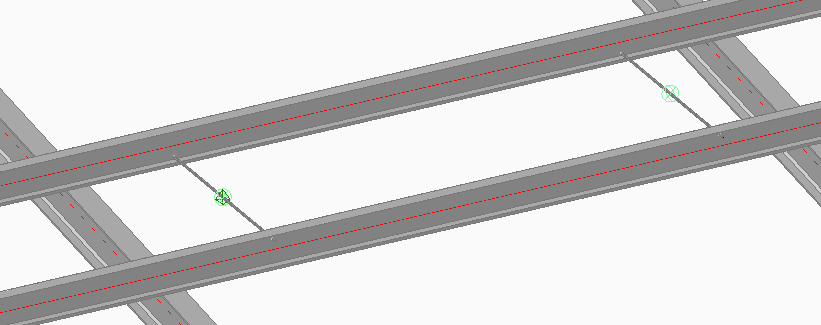

  • An array of Snaptites between 2 purlins or between 2 siderails (Z shapes)

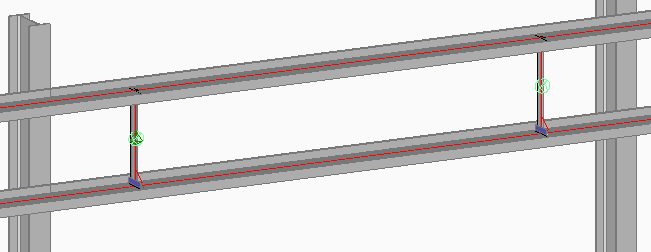

  • An array of supports between 2 side rails



Selection order

  1. Left beam or rafter
  2. Right beam or rafter
  3. Top Purlin or Siderail
  4. Bottom Purlin or Siderail or Eaves beam
