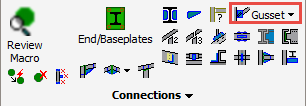

Command -



The 2 base gusset plate group connects a single brace to either a beam or column.

On activating this command you will be prompted to:

  1. Select the Column (or beam)
  2. Select the bracing member


Note!

When selecting the profiles to be connected, Parabuild will automatically filter the proposed connections.

The filtering will not only be based on the profile types, but also their orientation with respect to each other. For example, Parabuild will recognize if the gusset plate is connecting to a column flange or web. This information is used by this command to filter out the incompatible connections in the selection dialog.

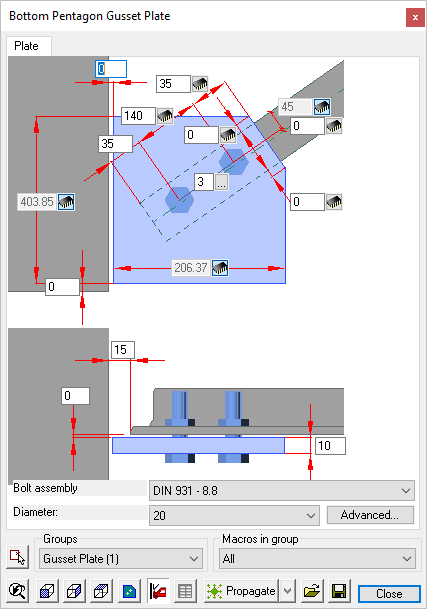

Therefore, the presented options may differ from those illustrated here.

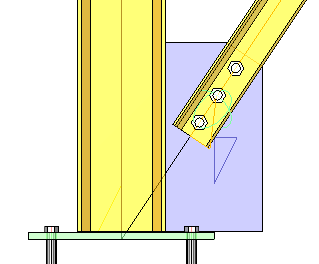

An example of the finished gusset plate
