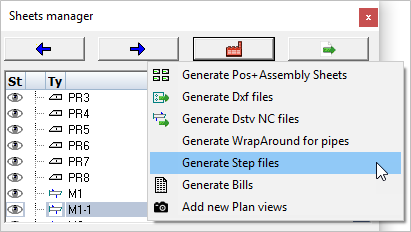

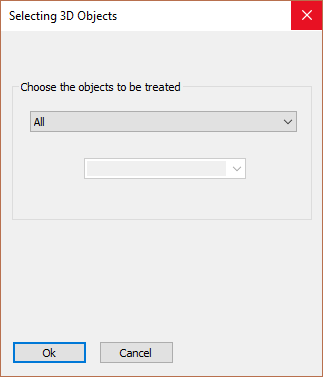

This tool will generate a step file for each position number in the drawing.


STEP file is a CAD file format, usually used to share 3D models between users with different CAD systems.

The step file is often needed for CNC machines that can automatically cope (plasma/laser) hollow profiles.

The number of parts to be produced is added to the name of the file : "PR5 x 6.stp"

Note

At the time of writing this command will only work in BricsCAD and when the Communicator module is installed and licensed.
