Command - Prb_Fillet



This command will work on almost all edges of plates and profiles.

But it will also work on the axis of a profile if you use it on a profile with at least 2 axis line segments.

At the command line prompt:

  1. Enter the fillet radius
  2. Select the first line
  3. Select the second line

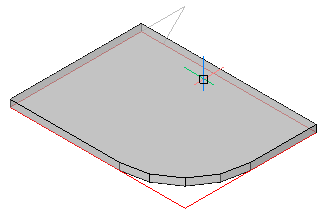

The result after applying a fillet on a plate



Before and after applying a fillet on the axis of a profile
