Command - PrB_CreateDetail



This command will draw a new detail view based on an existing view.

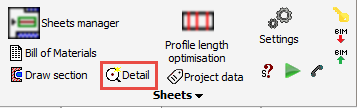

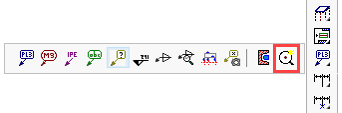

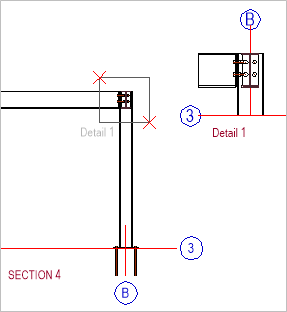

When you start this command you first need to indicate two points that form the rectangle of the detail  :

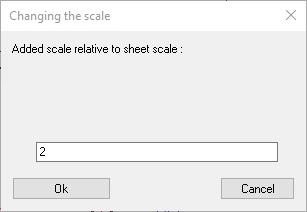

After that you will be asked to enter the scaling for the new detail view :

Parabuild will automatically show correct 3D measurements on the dimension values of scaled 2D views.

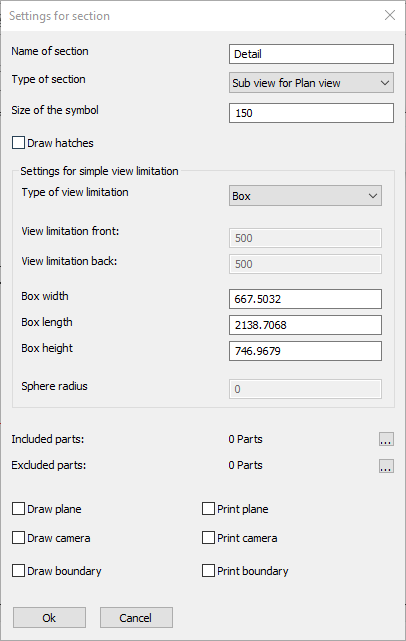

The 'Settings for section' dialog will appear. The options in this dialog are explained in the Draw Section topic..
