Command - Prb_ChainOrdinateDim

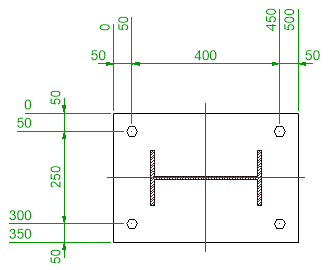

This command will draw a chain dimensions set combined with an ordinate dimensions set.

The command input is almost the same as the AutoCAD/BricsCAD Aligned Dimension command.


It also allows you to draw oblique dimensions. To do that, press <Enter> right after starting the command. Then select an oblique line in the view to which you want the new dimension to be aligned to.
