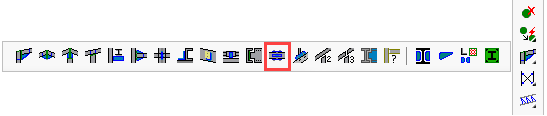

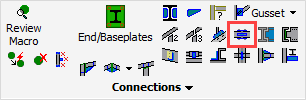

Command -




The Beam or column splice connection requires that the profile be split at the point to be spliced.

Selection order

First select the base beam, then select the beam that will be lengthened.

The ending of the first beam will determine the location of the splice and thus the location of the plates.

Note

When selecting the profiles to be connected, Parabuild will automatically filter the proposed connections.

The filtering will not only be based on the profile types, but also their orientation with respect to each other. For example, Parabuild will recognize if a beam is connecting to a column flange or web. This information is used by this command to filter out the incompatible connections in the connection selection dialog.

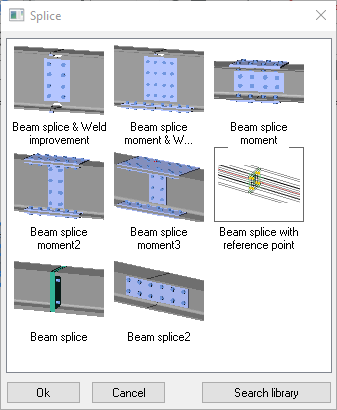

Therefore, the presented options may differ from those illustrated here.
