Add Ext. Line to Chain Dim.
Command - PrB_AddToDims
This command allows you to add more dimension points to an existing dimension.
It works on a chain dimension, on single aligned dimensions and also on ordinate dimensions.

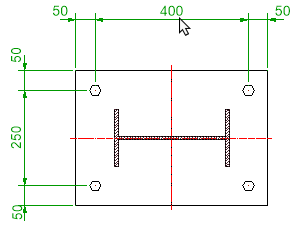

Selecting the dimension to which you want to add more dimension lines |
Selecting the location for the new dimension line and the result |
