Command -

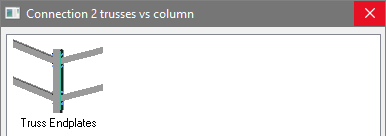

This command will add full depth end-plates truss connection where 2 trusses connect to one column.

On activating the command you will be prompted to select in this order :

  1. The column
  2. The lower chord of the left truss
  3. The upper chord of the left truss
  4. The lower chord of the right truss
  5. The upper chord of the right truss

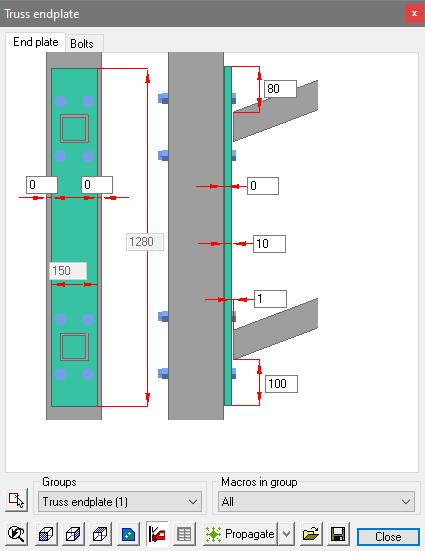

After selection, the options dialog will appear :

The end-plates will be drawn immediately :
