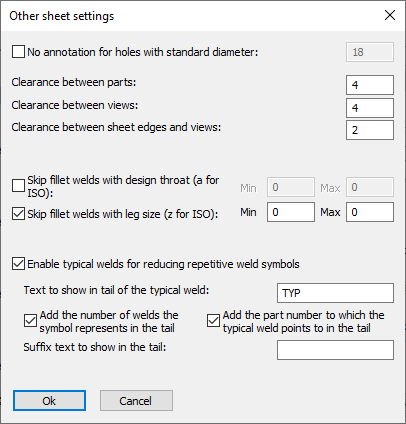

This dialog collect various sheet-related options.

In this dialog box you can change the following settings :


No annotation for holes with standard diameter - Checking the checkbox will result in holes with the given diameter not getting any annotations on the 2D drawings.


Clearance between parts - Enter the minimum space that Parabuild should keep between the parts on the drawing. A part is considered to be the collection of all the views of the part.

Clearance between views - Enter the minimum space that Parabuild should keep between the views on the drawing.

Clearance between sheet edges and views - Enter the minimum space that Parabuild should keep between the views and the edges of the sheet. The edges are the frame of the sheet, the title block, the BOM and the note on the sheet.

Skip filet welds with design throat min/max - Enable this to hide all fillet welds whose design throat are within the given minimum and maximum sizes.

Design throat is the same as nominal throat size (a for ISO).

Skip fillet welds with fillet size min/max - Enable this to hide all fillet welds whose fillet leg size ('z' size) are within the given minimum and maximum sizes.

Enable typical welds for reducing repetitive weld symbols - Typical welds are identified as welds with the same sizes and type that are also welding together geometries with the same part numbers. By enabling this identical welds can be represented by a single typical weld symbol with an added automatically generated tail description.

    • Text to show in tail of the typical weld - Enter the typical weld identifying text that should be added to the tail, so that the weld symbol can be recognized as such
    • Add the number of welds the symbol represents in the tail - When you enable this, the total number of parts that should be welded using this typical weld symbol will be added to the weld tail
    • Add the part number to which the typical weld points to in the tail - When you enable this, the part number of the welded part will be added to the tail (the part number of the stiffener in our example)
    • Suffix text to show in the tail - Enter the optional extra text that should be added after the part count and part number in the tail.
