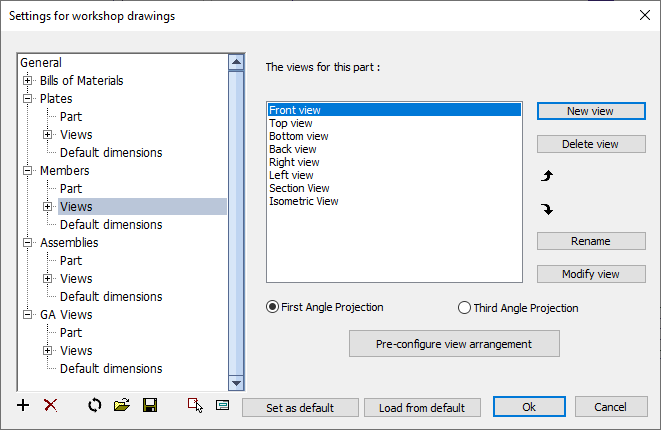

In this dialog you can configure all of the views that should be drawn on the sheet.

In this dialog box you can change the following options :


New view - Create a new view by entering a unique name

Delete view - Enables you to delete the selected view

Rename - Enables you to rename the selected view

Modify view - For more information about this, see the Modify view settings topic

First angle projection - First angle orthographic projection is used often in the EU

Third angle projection - Third angle orthographic projection is used widely in the USA

Pre-configure view arrangement - Allows you to change and re-arrange the views of the profile or assembly settings.


Note

Using the Pre-Configure dialog box as well as the First/Third angle radio buttons can cause a reset of all of your views.

It is therefore best to first use the Pre-configure dialog to configure the views.

If needed after that you can tweak the arrangement some more with the View Settings and Configure view directions dialogs view.
