Command - Prb_Chamfer




This command will work on almost all edges of plates and profiles.

It will also work on the axis of a profile if you use it on a profile with at least 2 axis line segments.

At the command line prompt:

  1. Enter the first distance
  2. Enter the second distance
  3. Select the first edge or axis segment
  4. Select the second edge or axis segment

Note that the first edge will be equal to the first distance entered, the second edge will be equal to the second distance that was entered.

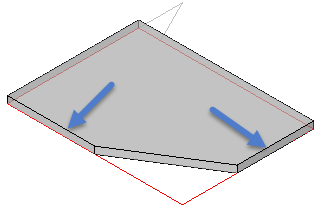

The result after applying a chamfer on a plate



Before and after applying a chamfer on the axis of a profile
