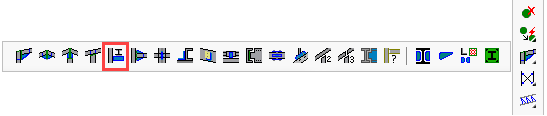

Command -



The Beam Offset to Column is a beam connection connecting to the side of a column. This connection is usually applied where the column is supporting some form of runway or crane beam.

Selection order

First select the column and then the beam.

Note

When selecting the profiles to be connected, Parabuild will automatically filter the proposed connections.

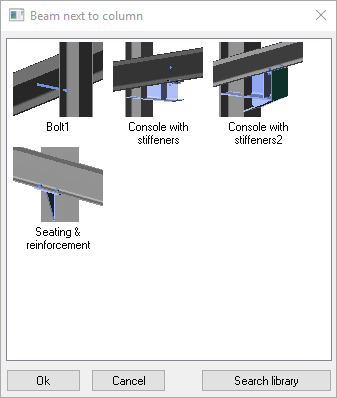

The filtering will not only be based on the profile types, but also their orientation with respect to each other. For example, Parabuild will recognize if a beam is connecting to a column flange or web. This information is used by this command to filter out the incompatible connections in the connection selection dialog.

Therefore, the presented options may differ from those illustrated here.
