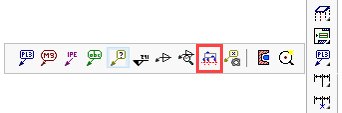

Command - PrB_DrawTagsOnView



This command can automatically annotate all parts on a 2D view.

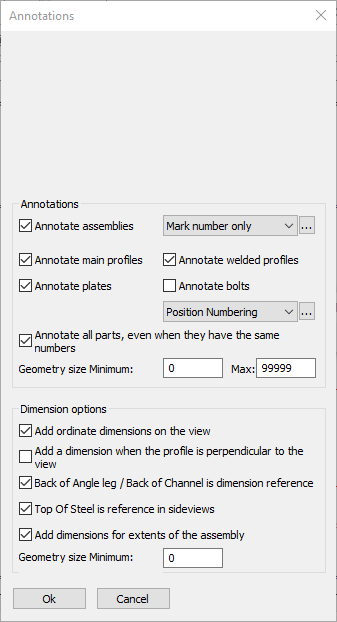

After activating this command, you will first have to select the view, and the following dialog will appear:


For more information about the options in this dialog, see the Add new Plan view topic.


Just a note of warning: Select only the options that you feel are necessary to achieve your intent. Activating all options may unnecessarily 'clutter' the drawing requiring you to spend time editing the finished result.
