Command - (Prb_MacroGroup "Misc")

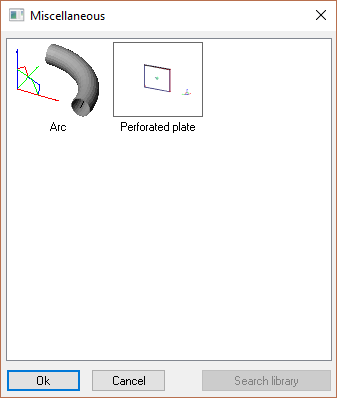

This command offers 2 options:

  • Arc
  • Perforated Plate

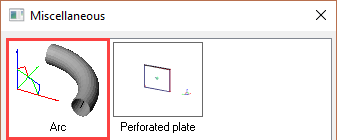

Arc


This command will 'bend' any profile or section through a prescribed radius and angle

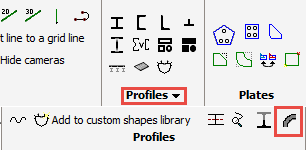

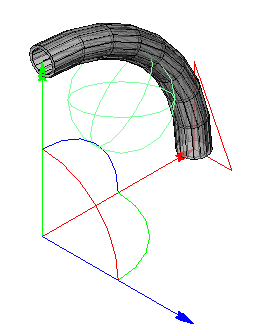

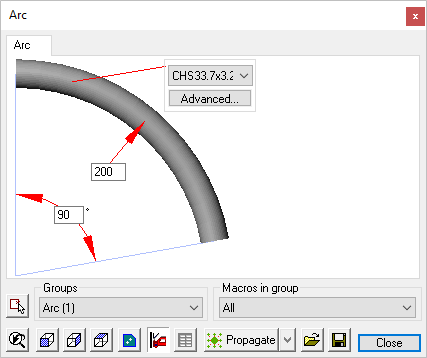

On selecting the 'Arc' icon, you will be prompted to 'Select the point that will determine the placement'. this point will be the center-line intersection of the radius. After selection, the default profile will be drawn with the following customization dialog:

Here you may modify the profile size - or a completely new profile may be selected using the 'Advanced' tab

You may also modify the bend radius and segment angle.

The changes made in the customization dialog will be immediately be shown on screen.

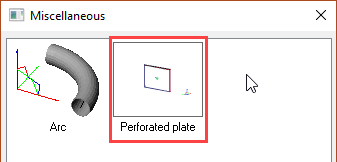

Perforated Plate
