Command -  PrB_Columns

Draws columns on the intersections of grid lines.

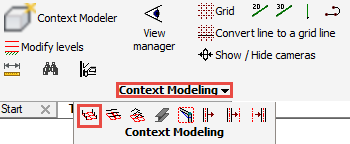

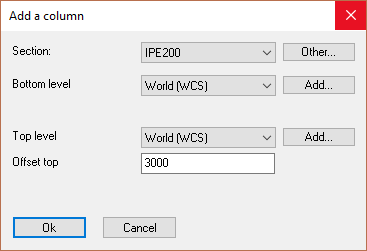

On activating this command, the Add a column dialog will appear prompting you to select the profile to be drawn, together with the top and bottom levels. If levels have already been established, they will be reflected here, additionally, you have the opportunity to create new levels or or choose an extra height offset of the column by entering a value for Offset top.

.

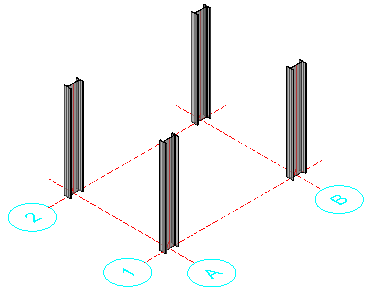

The command will draw a column on each intersection it finds between the grid lines that you select.

The columns will be drawn constrained to the grid lines. Moving or adjusting the grid line centers will automatically move the columns.

The columns cannot move independently of the grid lines, unless if the profile is disconnected from the macro.
