Sandwich panels / corrugated sheet metal sections

Parent Previous Next

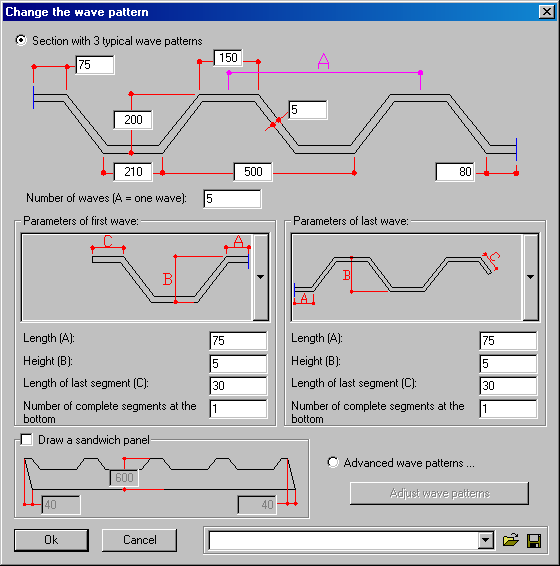

This command will draw the section of andwich panels or corrugated sheet metal sections as one polyline. This polyline can be used as a section to draw a profile. You can choose between 3 types of sections with help from the illustrations. The first wave, the last wave and the repeating wave in the middle. If you want to create more waves, you have to use the option Advanced wave patterns.
